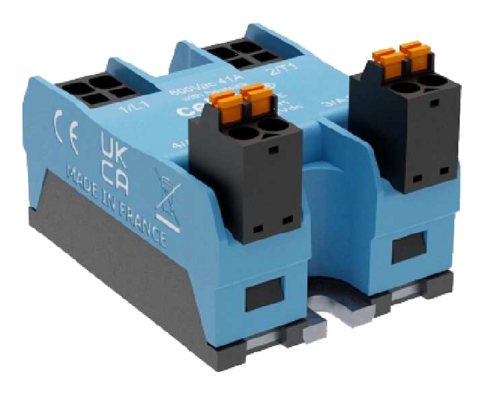

SOR967440 Single phase Power Solid State Relay 41A with "push-in" terminals

Zero Cross Solid State Relay especially designed for resistive loads (AC-1). Back to back thyristors on output with TMS2 (*) technology with a long lifetime expectancy : 24 to 600VAC max 90A. Current limited by the connectors at 41A. Overvoltage protection at the output by self turn ON of the thyristors (TVS diodes on gates). Large control range: 3.5-32VDC with input current limiter. Green LED visualization on the input. Input overvoltage protection. Double "push-in" spring power terminals (max. 6mm²). Double "push-in" pluggable spring control terminals (max. 2.5mm²). Designed in conformity with IEC/ EN60947-4-3; IEC 60335-1/ VDE0700-1; IEC 62314.
