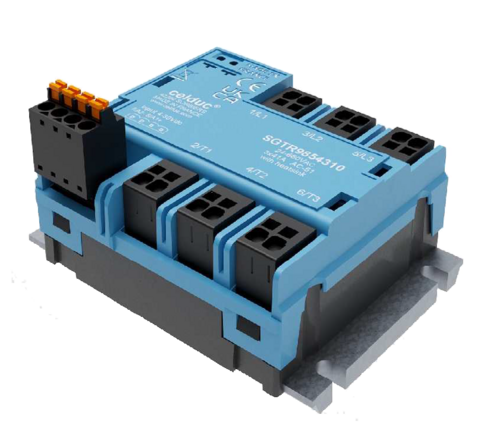

SGTR9854310 Three-phase Power Solid State Relay 3x41A with "push-in" terminals

Three-phase Zero Cross Solid State Relay especially designed for AC-1 resistive loads. Over-Voltage protection at the input (transil) and output (TVS). Back to back thyristors on output with TMS² technology for a long lifetime expectancy : 24 to 660VAC max. 3x60A. Current limited by the connectors at 41A. Direct copper bonding (DCB) technology. Large control range: 4-30VDC with input current limiter. Green LED visualization on the input. Double "push-in" spring power terminals (max. 6mm²). 4 poles "push-in" pluggable spring control terminals (max. 2.5mm²). Designed in conformity with IEC/ EN60947-4-3 and IEC/EN60947-4-2 ; IEC 62314. Built in IP20.

Manufacturer

Celduc

Control voltage

4-30VDC

Current

40A

Max current

60A

Max system voltage

24-640VAC

Phase

3-phase

Product sheet

FT_SGTR9854310.pdf

Electrical connection

Push-In quick connect
